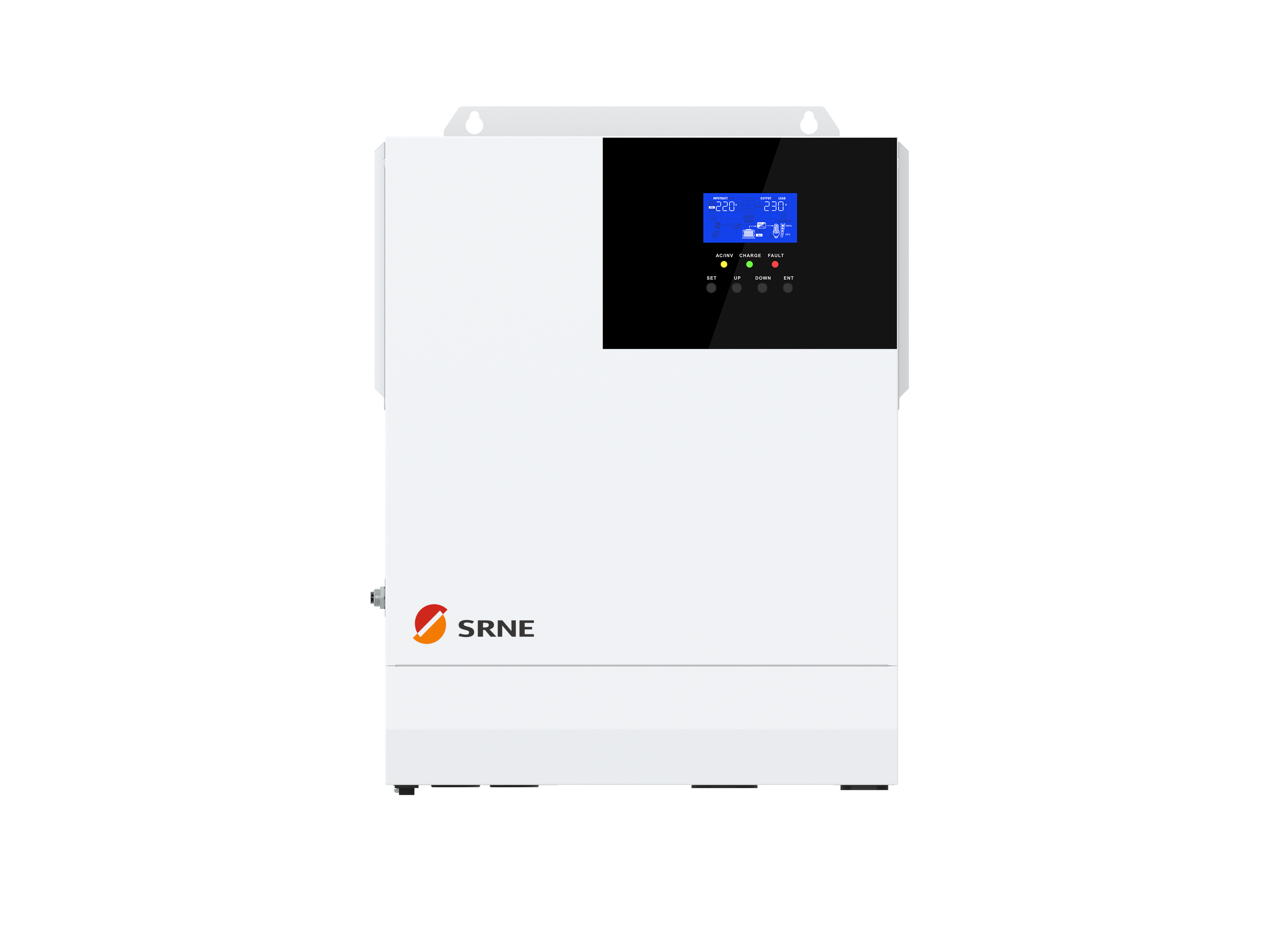

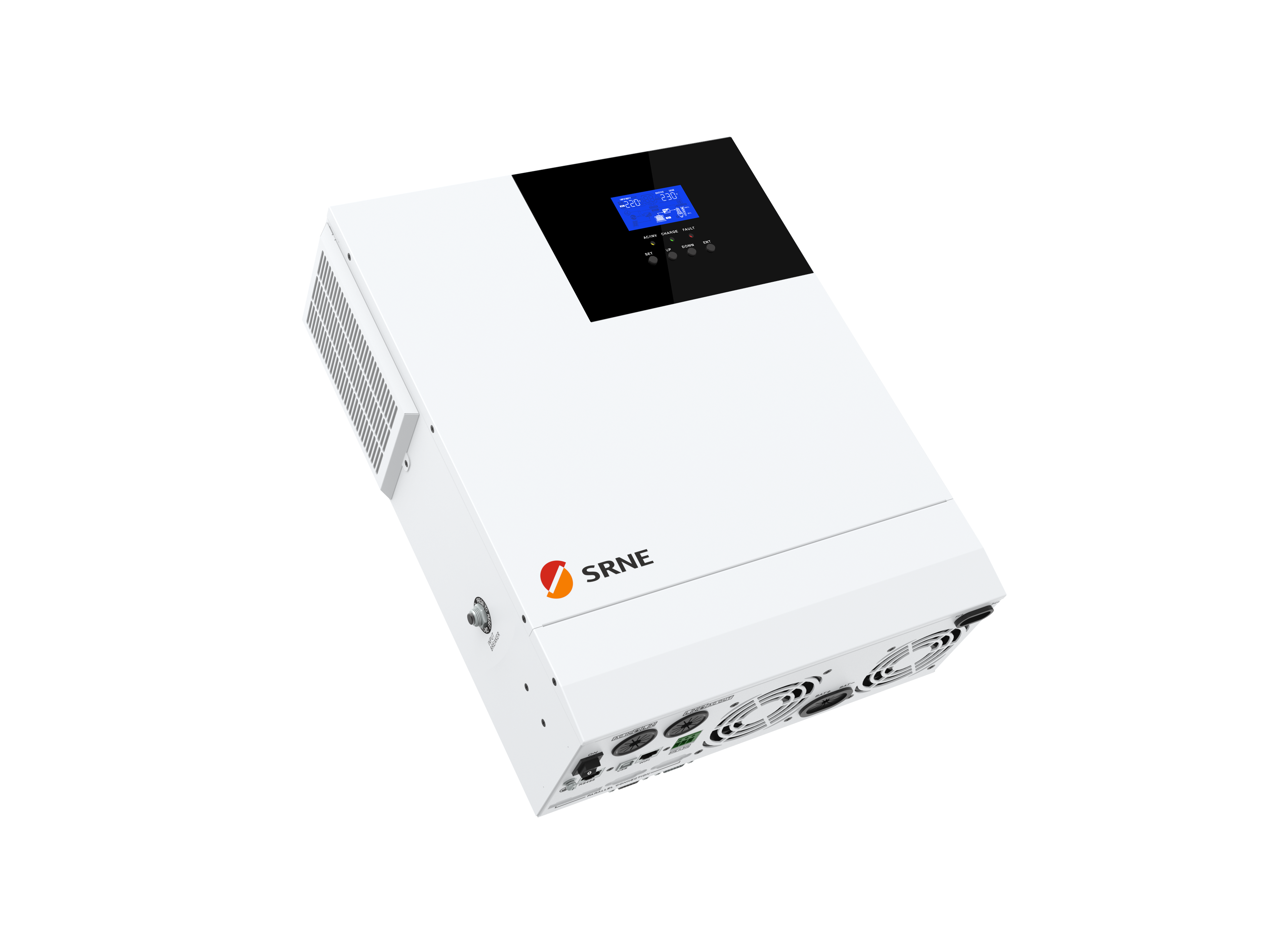

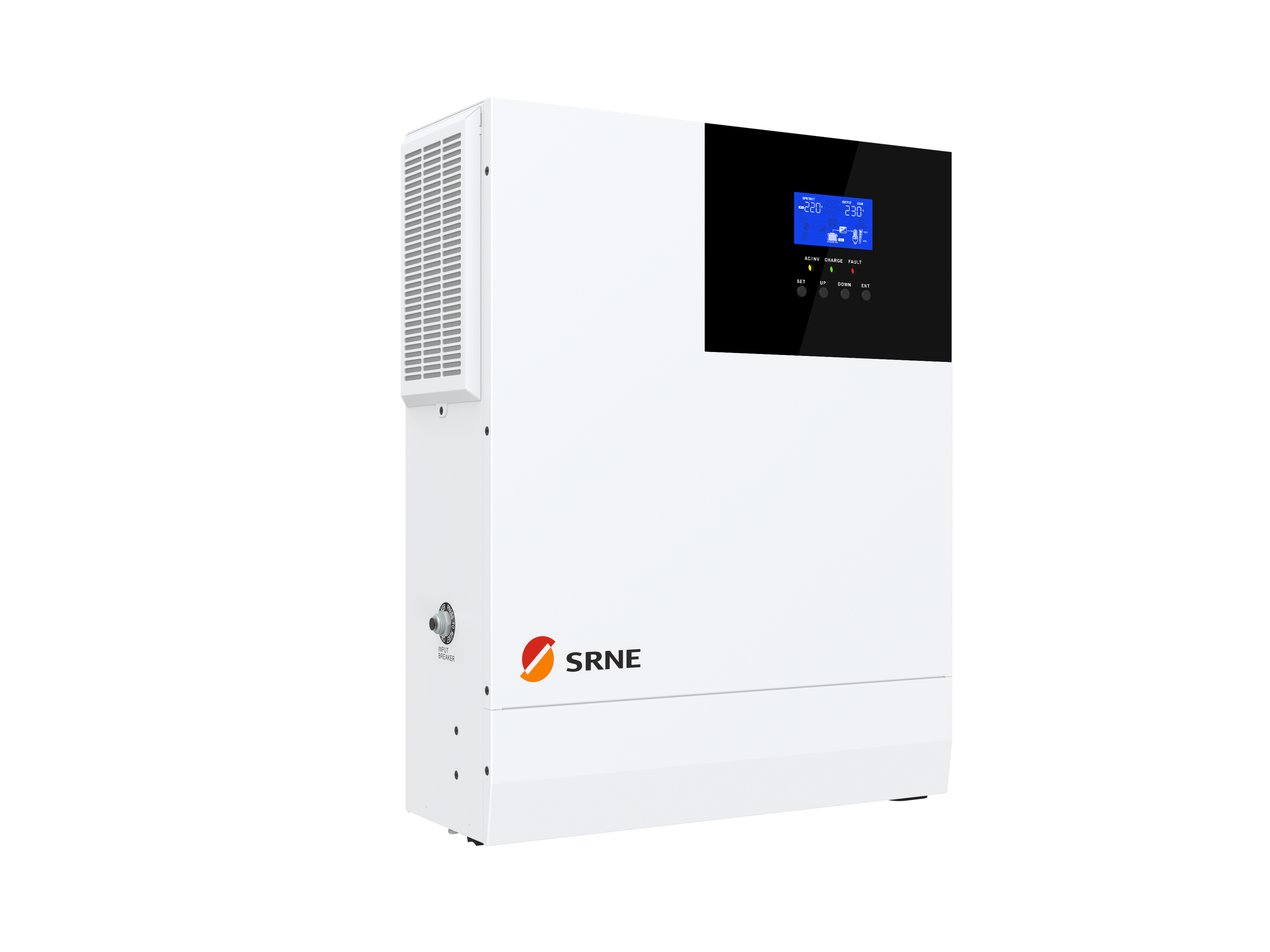

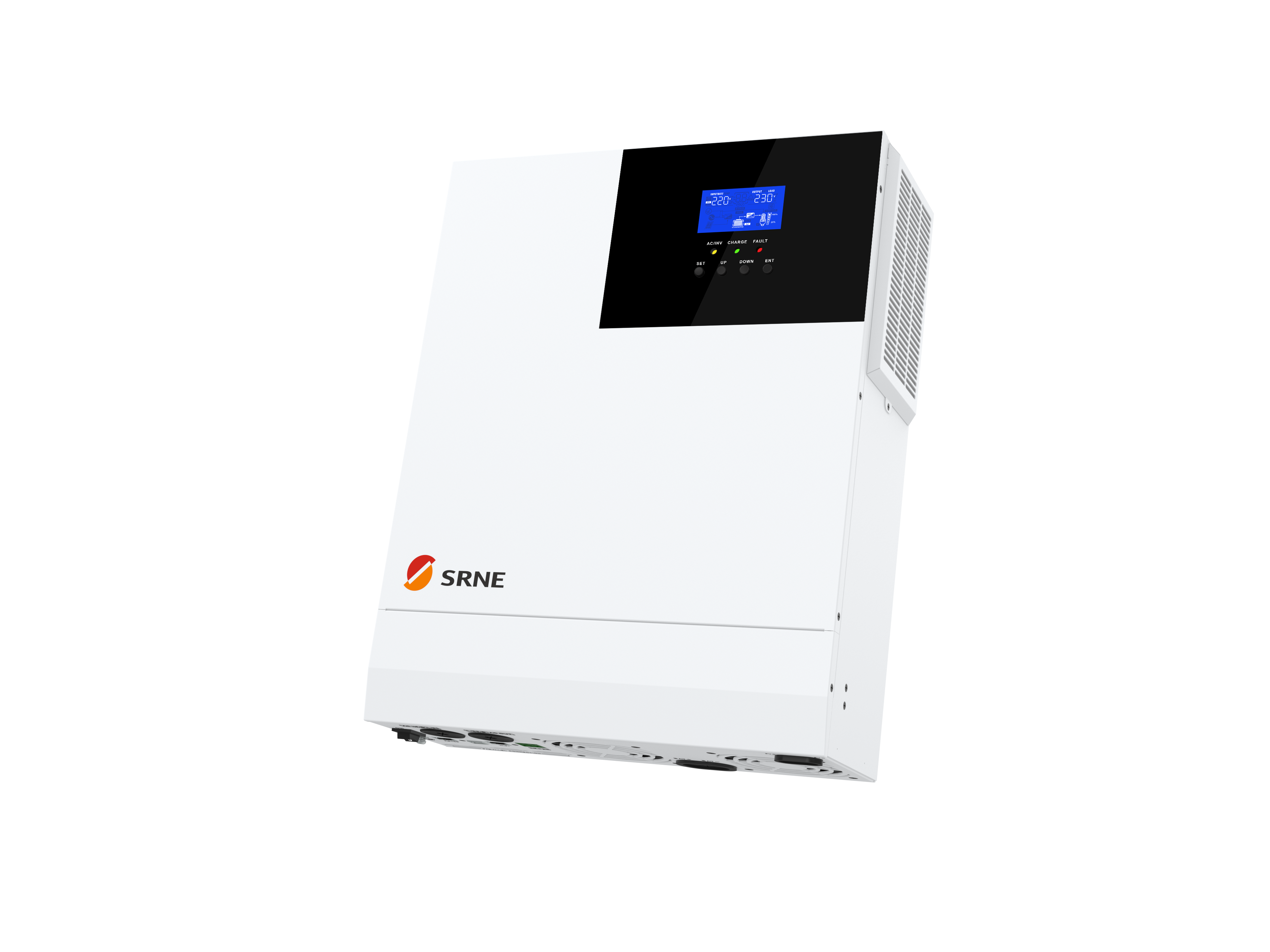

5KW 48V LowVoltage Inverter Parallel

Product Category

Hybrid Inverters

front
Side
side2
front2
Alternate Text

5KW 48V LowVoltage Inverter Parallel

5KW Low Voltage Off-Grid Hybrid Solar Inverter, Lithium Battery/GEL/AGM Compatible

Model: HFP4850S80-145; 48V Battery Input; 80A MPPT Charging Current; 145V Open Circuit Voltage

  • Alternate Text

    ● Rated Output Power: 5000W

  • Alternate Text

    ● Rated Battery Voltage: 48VDC

  • Alternate Text

    ● Max.MPPT Charging Current: 80A

  • Alternate Text

    ● Supports up to 6 devices connected in parallel

Download User Manauel Buy Now



All In One Solar Charge Inverter

MODELHFP4850S80-145
INVERTER OUTPUT
Rated Output Power5000W
Max.Peak Power10000VA
Rated Output Voltage230Vac(L/N/PE single phase)
Load Capacity of Motors
4HP
Rated AC Frequency50Hz/60Hz
WaveformPure Sine Wave
Switch time10ms
Parallel Capacity1-6

BATTERY
Battery TypeLi-ion/Lead-Acid/User Defined
Rated Battery Voltage48Vdc
Voltage Range40-60Vdc
Max.MPPT Charging Current80A
Max. Mains/Generator Charging Current60A
Max.Hybrid Charging Current140A

PV INPUT
Num. of MPPT Trackers1
Max. PV Array Power4400W
Max. Input Current50A
Max.Voltage of Open Circuit
145Vdc
MPPT Voltage Range60-115Vdc
MAINS/GENERGATOR INPUT
Input Voltage RangeUPS:170-280Vac  APL:90-280Vac
Frequency Range50Hz/60Hz
Bypass Overload Current40A
EFFICIENCY
MPPT Tracking Efficiency99.9%
Max.Battery Inverter Efficiency92%
GENERAL
Dimensions426*322*124mm
Weight10.8kg
Protection Degree
IP20, Indoor only
Operating Temperature Range-15℃ ~ 55℃
Noise< 60dB
Cooling MethodInternal Fan
Warranty2 years
COMMUNICATION
Embedded InterfacesRS485/CAN/USB/Dry Contact
External Modules (Optinal)
Wifi/GPRS
