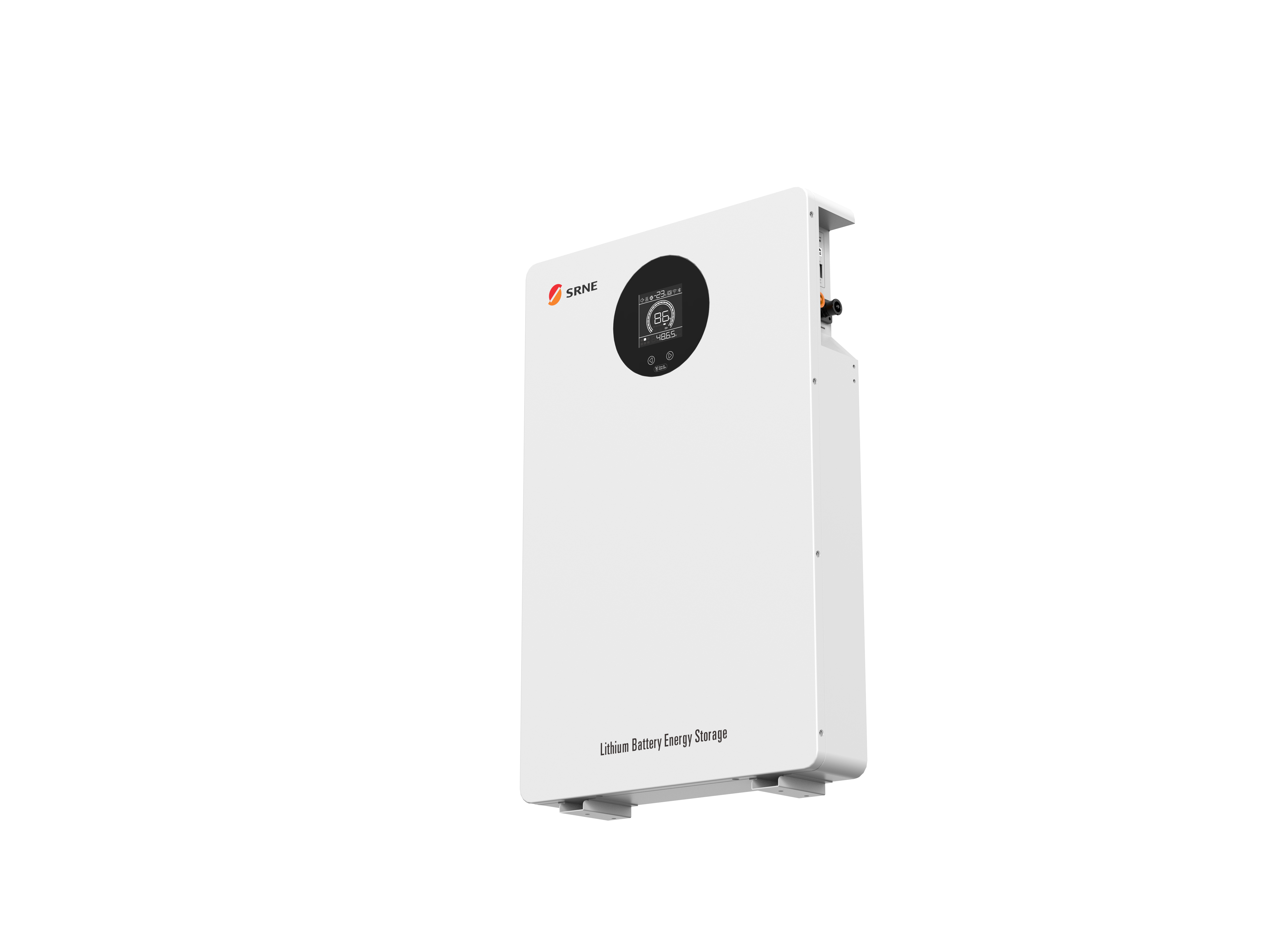

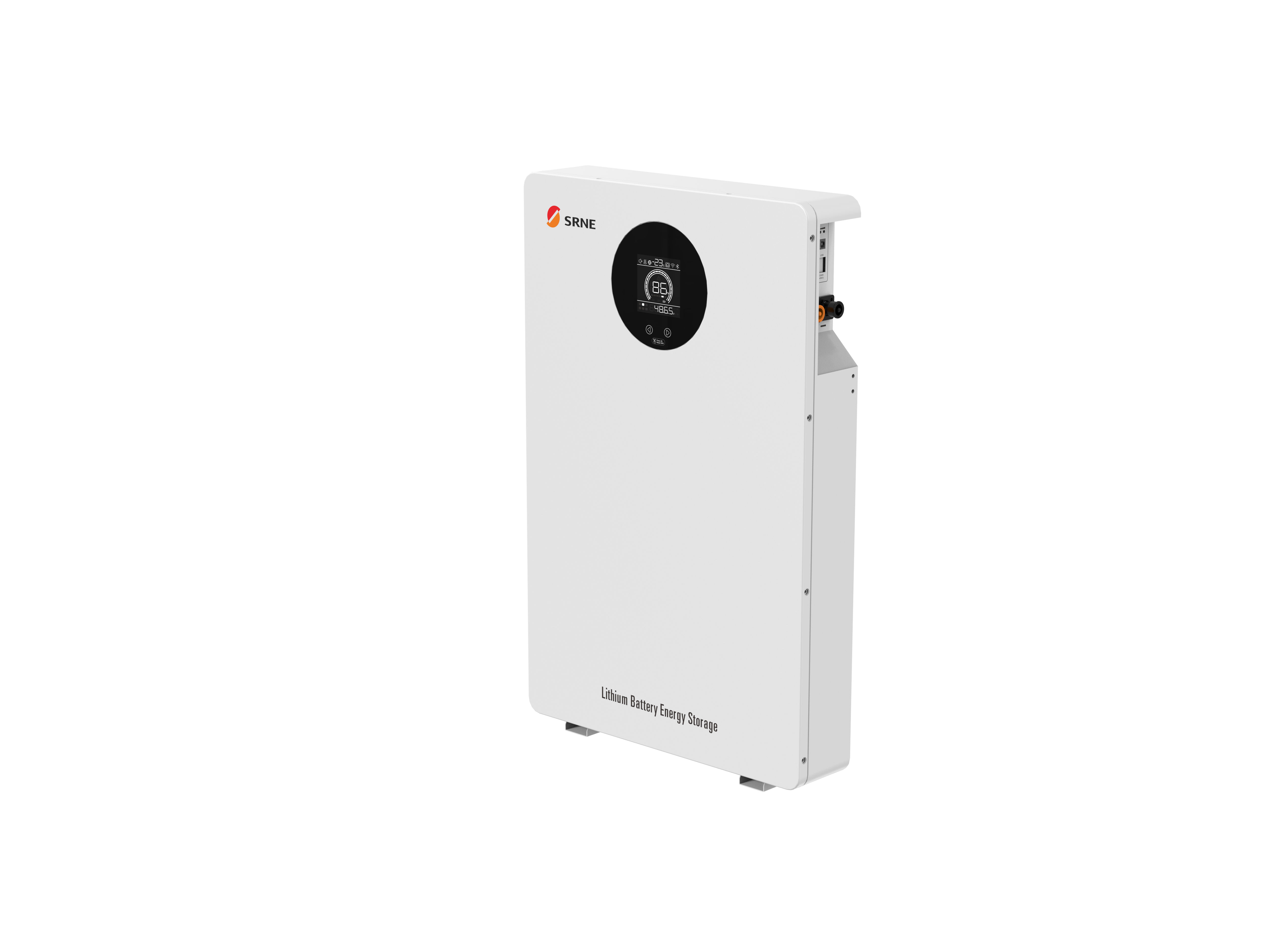

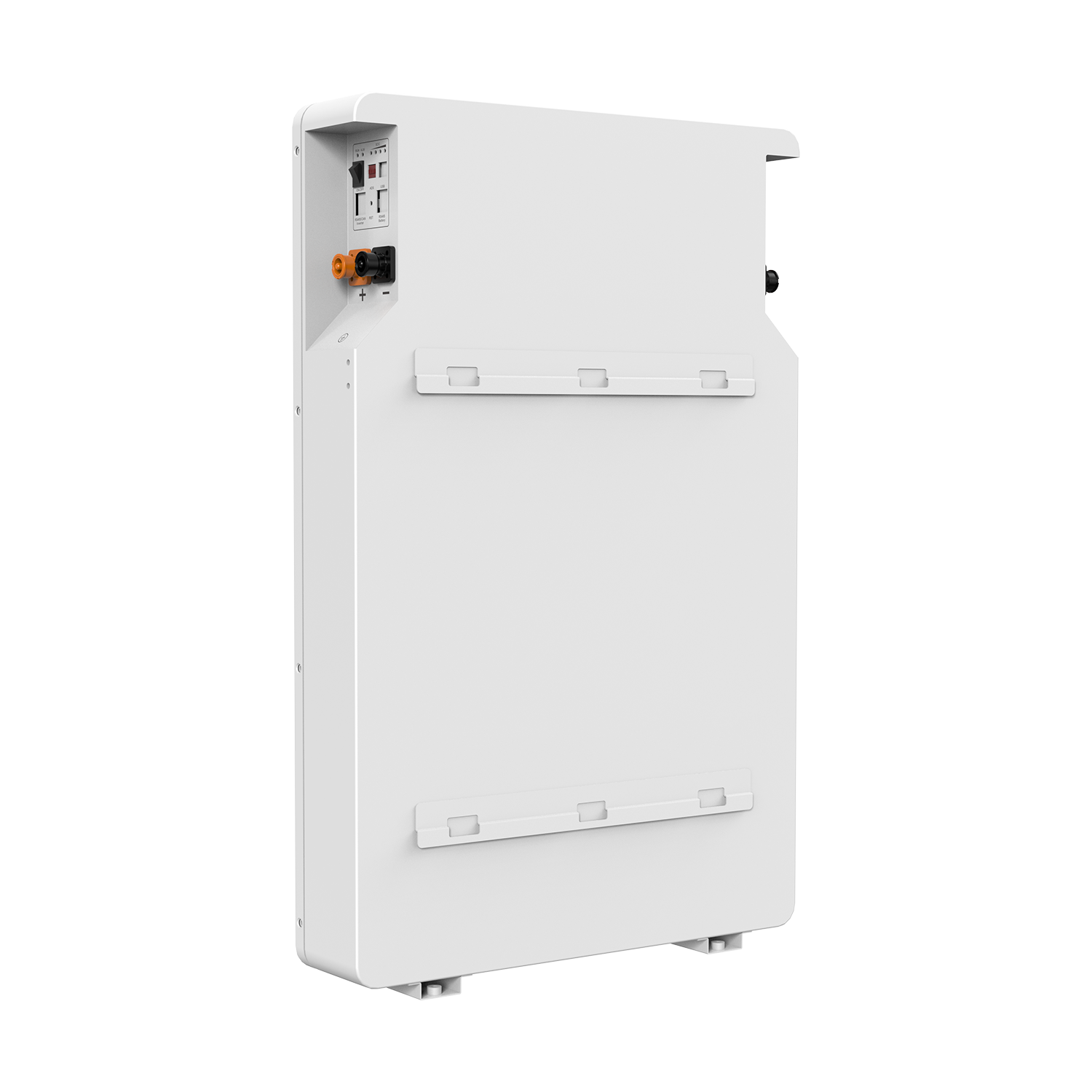

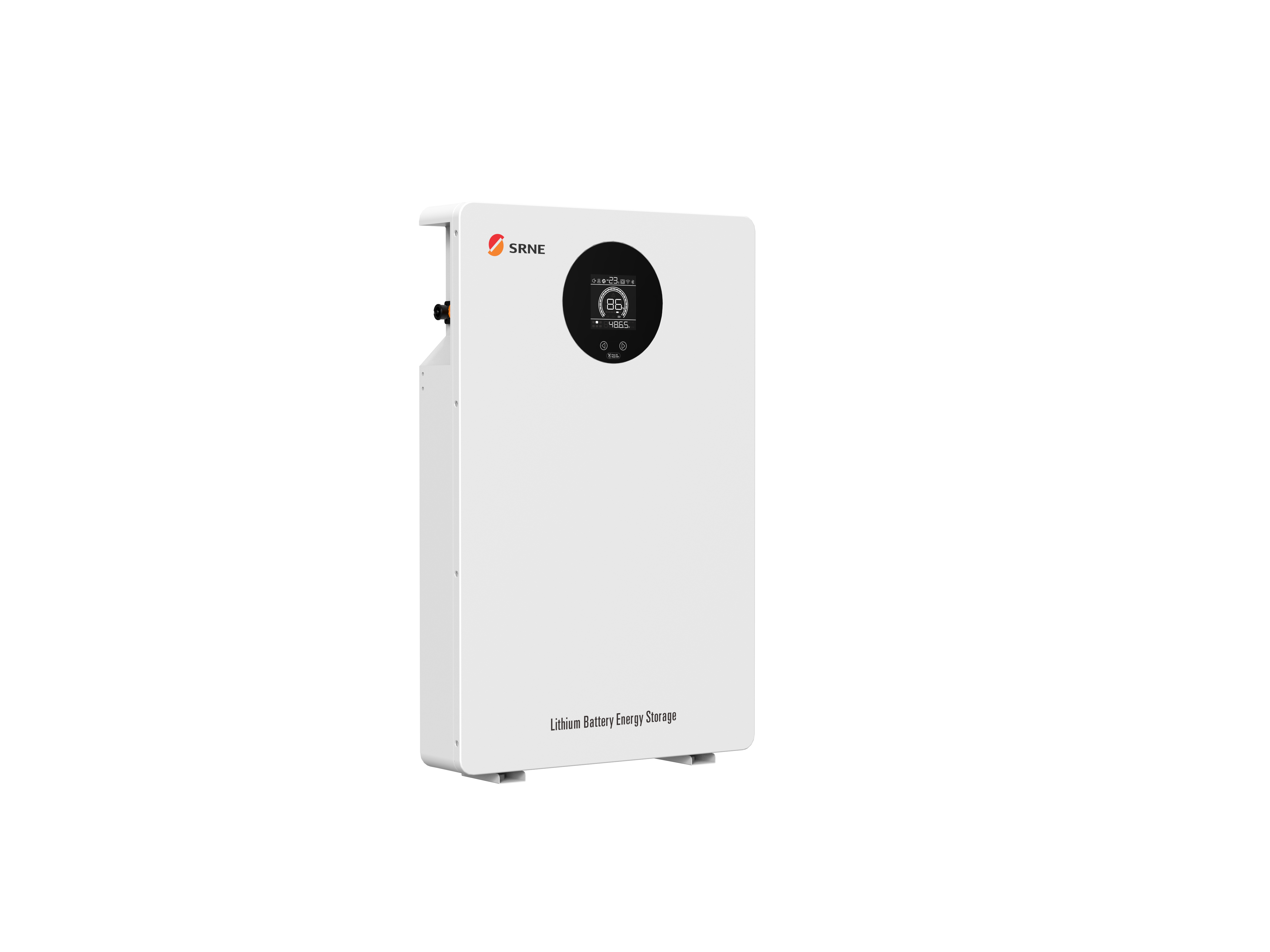

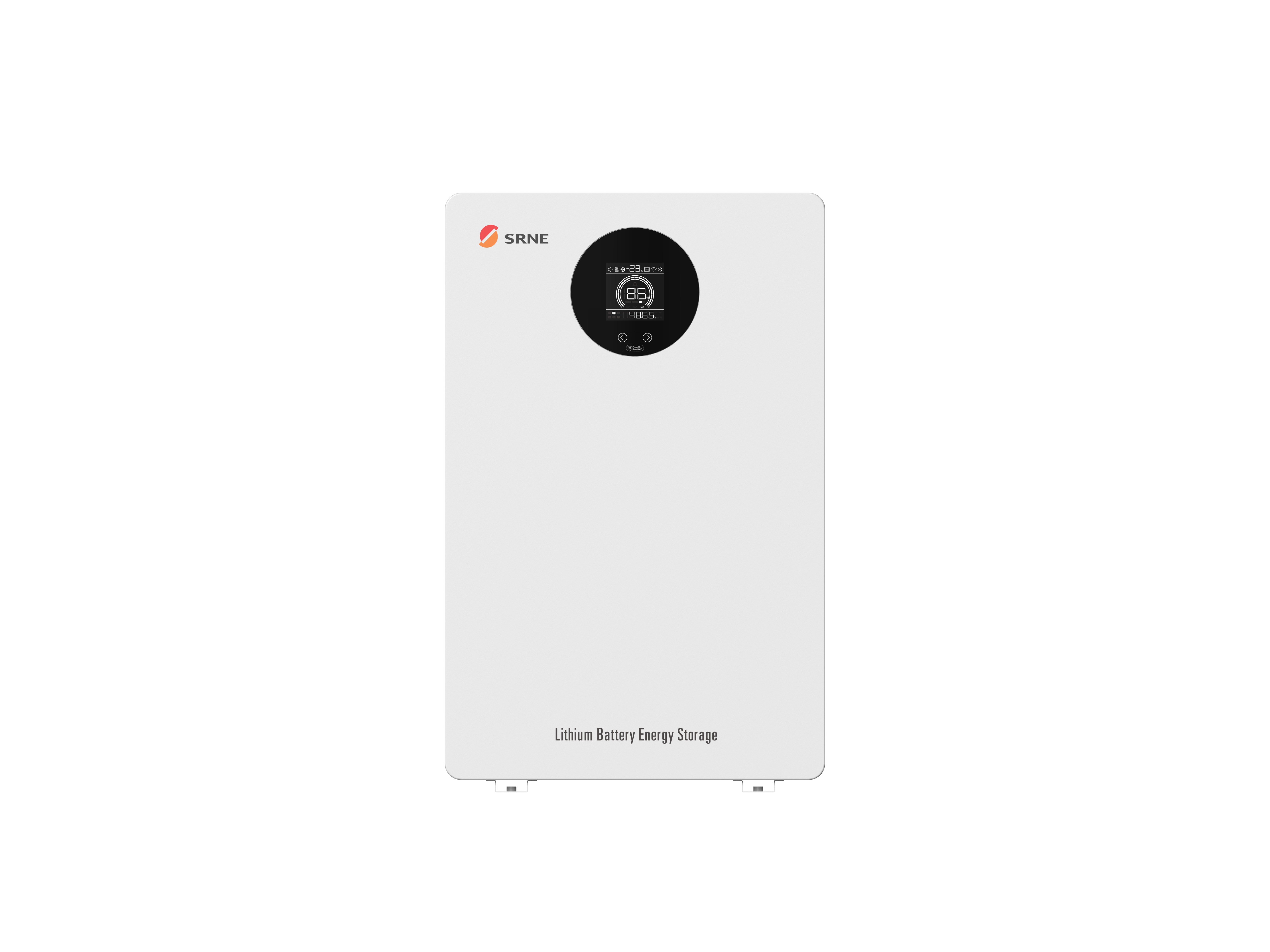

100AH 48V Lithium Ion Battery

100AH 48V LFP Energy Storage Battery

Model: SSLB-S48100; 51.2V Rated Voltage; 100AH Rated Capacity; 6000 times Cycling Lifespan. 20 years lifespan.

  • Alternate Text

    ● High Quality Lithium Iron Phosphate Cells for 6000 cycles.

  • Alternate Text

    ● Up to 9 In Parallel Connection, expand to 46.08kWh.

  • Alternate Text

    ● Plug-and-play, wiring can be done from either side.

  • Alternate Text

    ● Built-in Bluetooth & Wi-Fi with mobile APP.

Download User Manauel Buy Now



LFP Energy Storage Battery

MODELSSLB-S48100
MAIN INFO
Rated Voltage51.2V
Rated Capacity100AH
Battery Power5.12kWh
Battery Type
LFP
Cycling Lifespan6000 times(80%DOD, 0.5C, 25℃)
Lifetime20 years
Max. Parallel Capacity9 units

CHARGE & DISCHARGE
Max. Charging Voltage57.6V
Over Discharging Voltage44.8V
Max. Charging Current100A(1C)
Peak Charging Current110A(1.1C, 3s)
Peak Discharging Current110A(1.1C, 3s)

GENERAL
Dimensions460*100*725mm
Weight47kg
CommunicationCAN/RS485/USB/Wi-Fi/Bluetooth
Charging Temp. Range0~45℃
Discharging Temp. Range-10~45℃
Cooling MethodNautral Cooling
Protection GradeIP30
STANDARD
TransportationUN38.3, MSDS
SafetyIEC 62619:2017; EN IEC 61000-6, UL 1973
