3KW 24V LowVoltage Inverter

Product Category

Hybrid Inverters

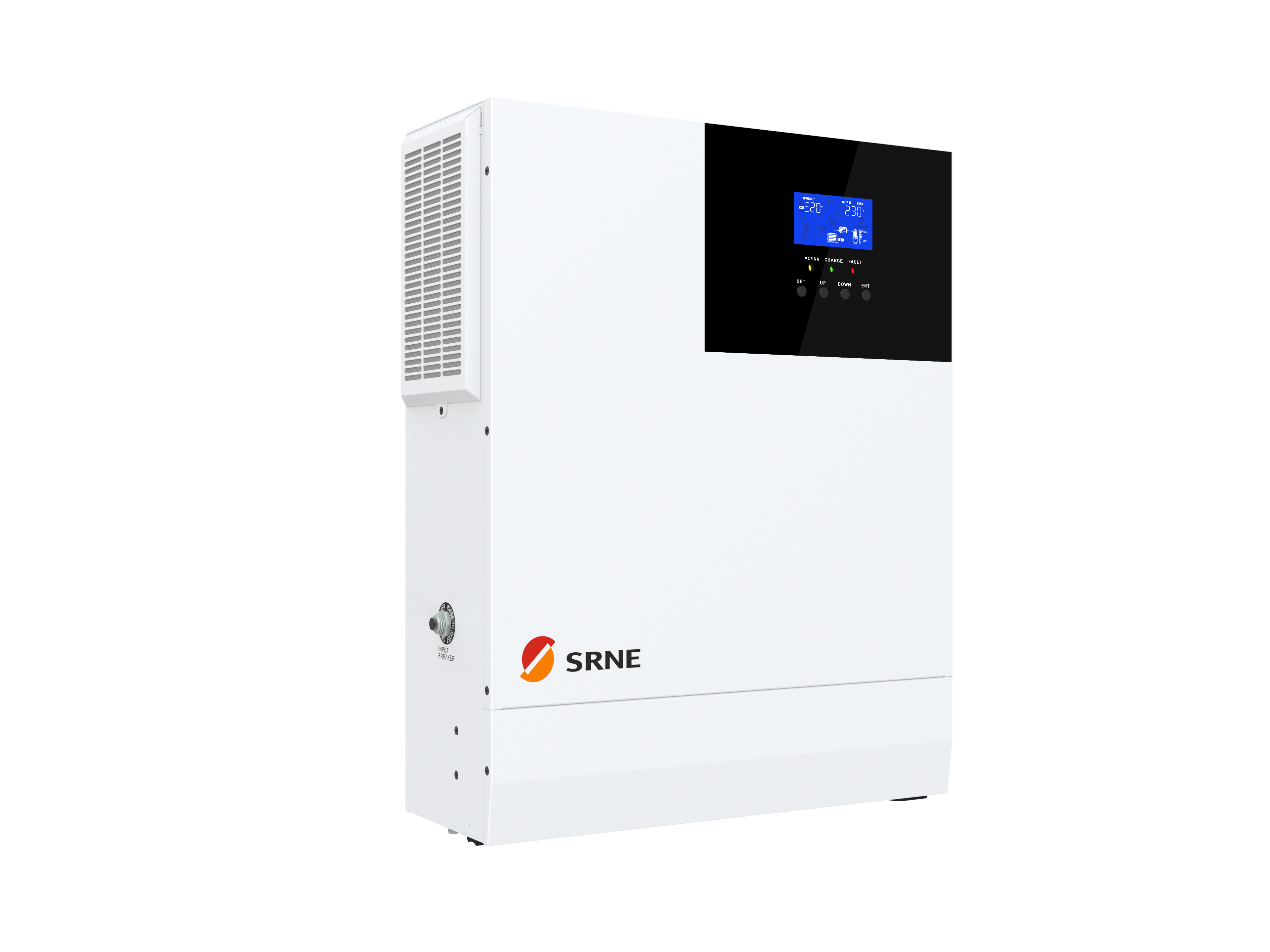

正面

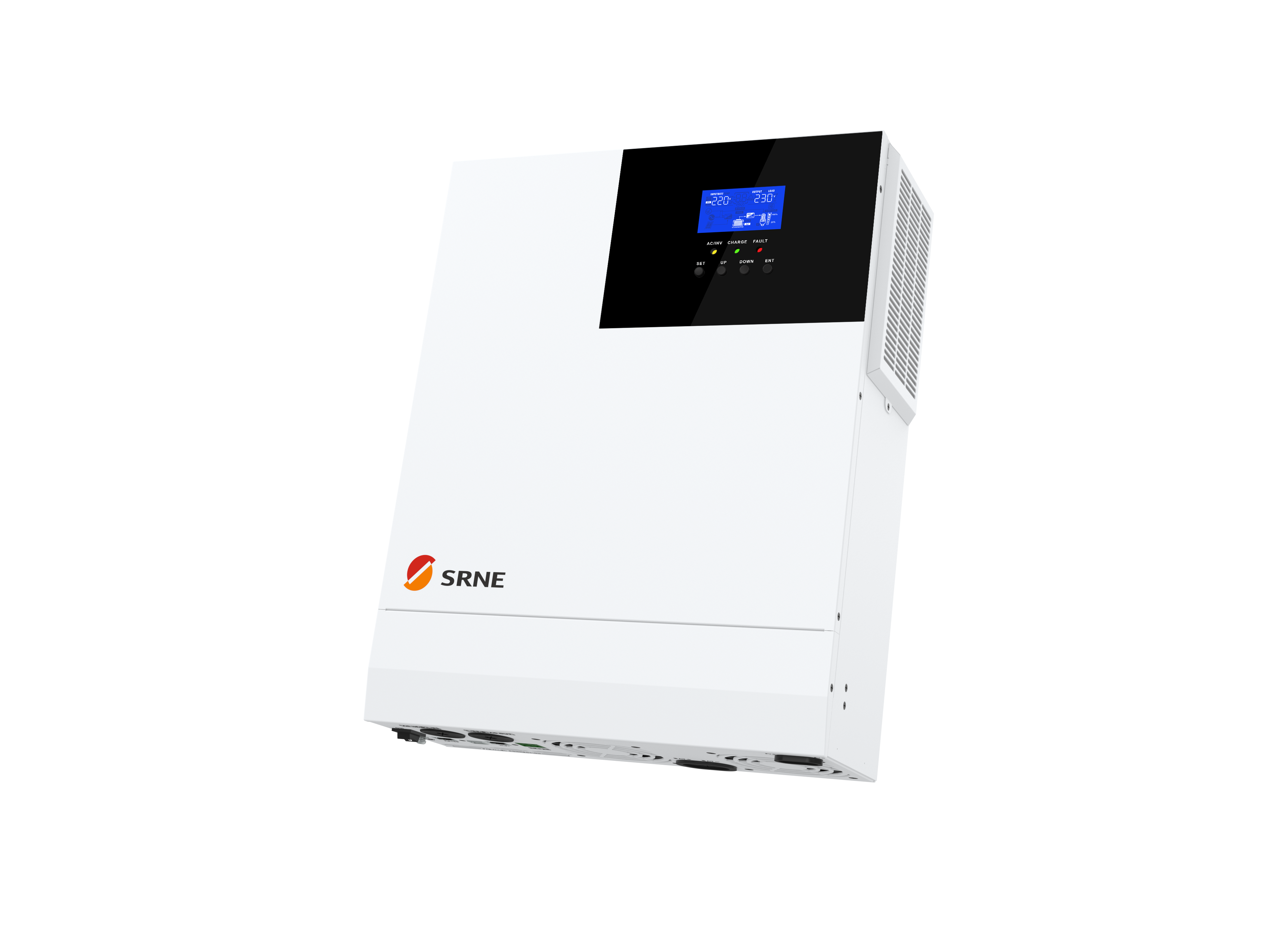

右斜面

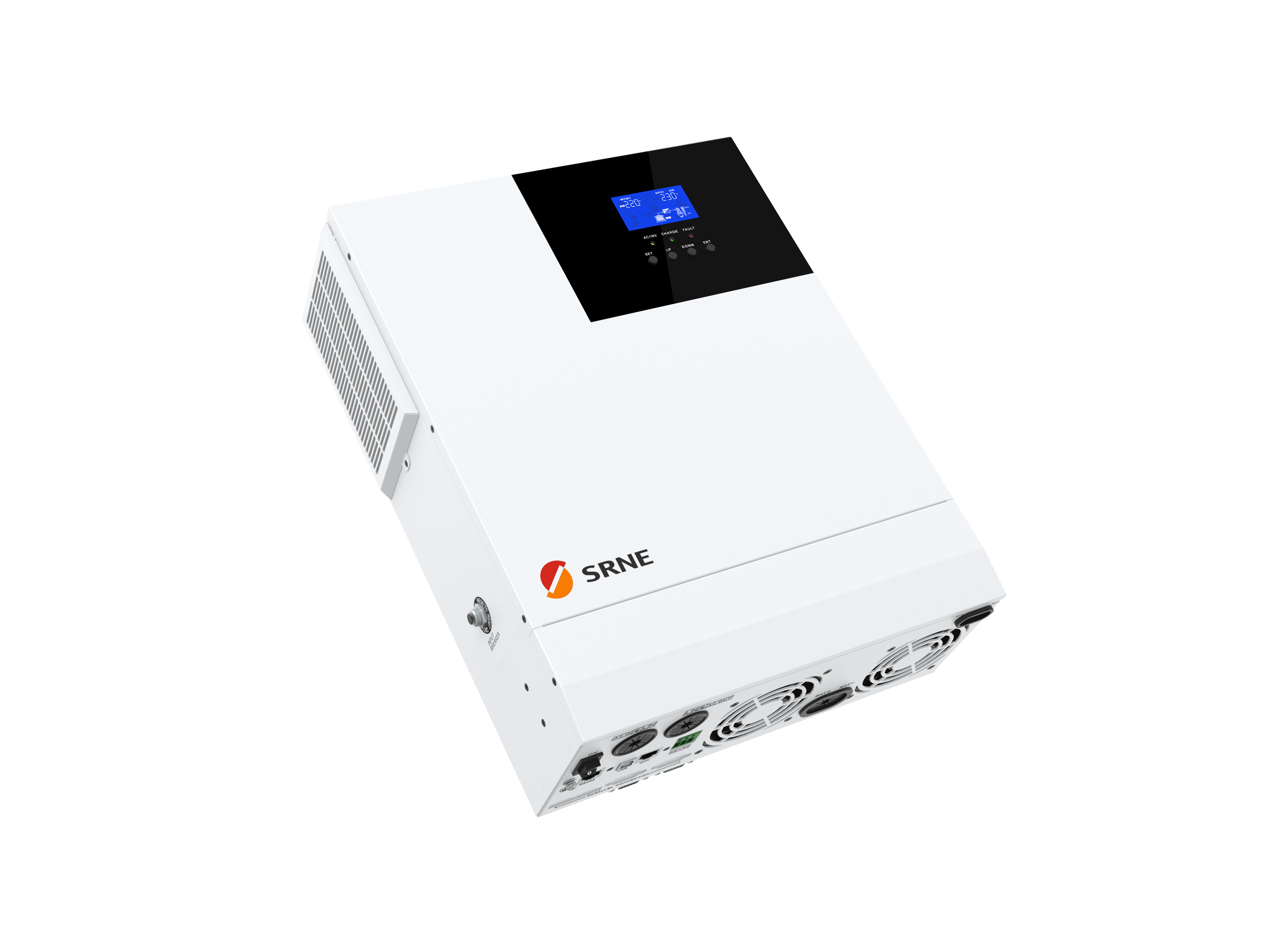

左斜面

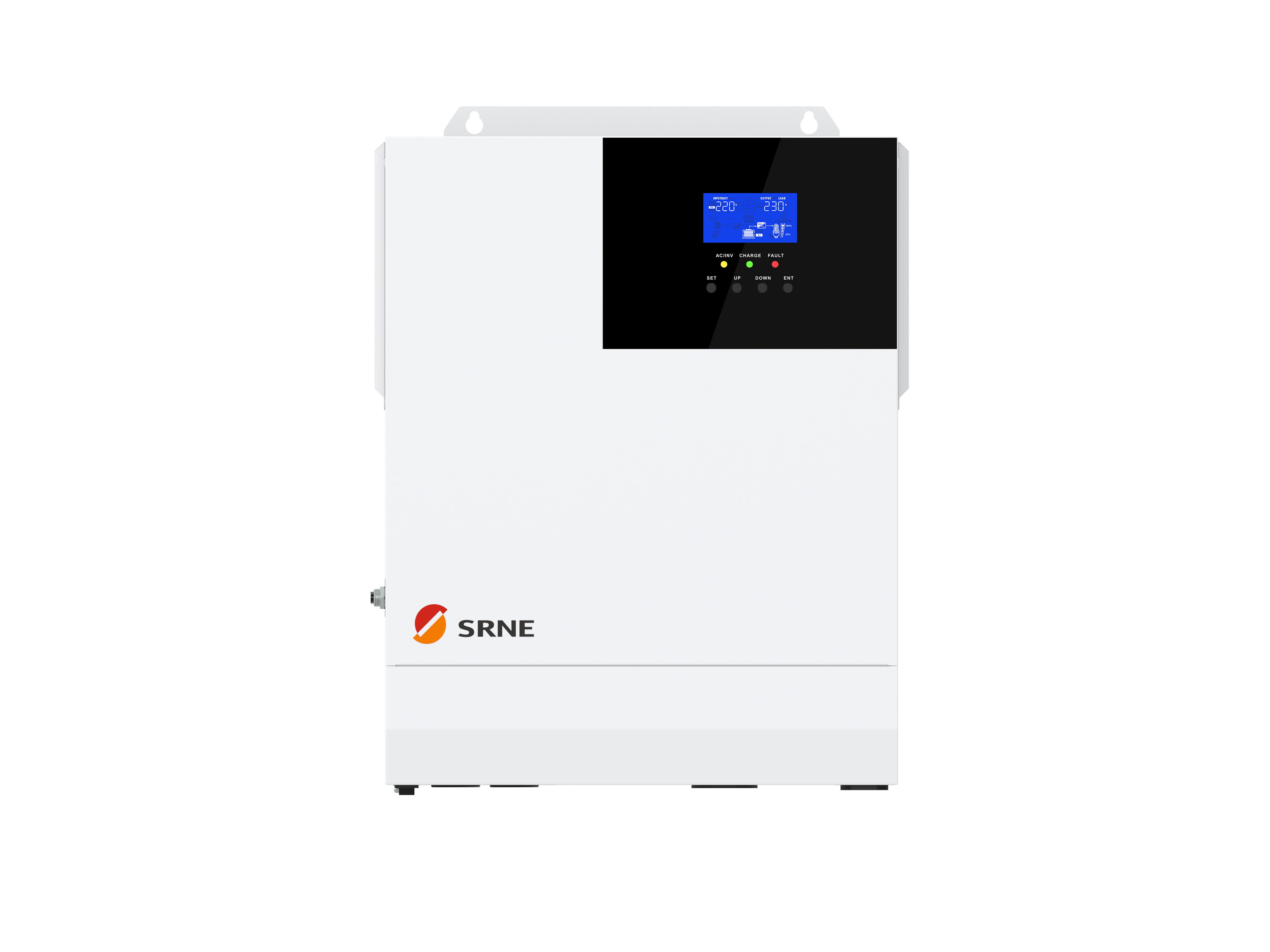

右正
Alternate Text

3KW 24V LowVoltage Inverter

3KW Low Voltage Off-Grid Hybrid Solar Inverter, Lithium Battery/GEL/AGM Compatible

Model: HF2430S60-100; 24V Battery Input; 60A MPPT Charging Current; 100V Open Circuit Voltage

  • Alternate Text

    ● Rated Output Power: 3000W

  • Alternate Text

    ● Rated Battery Voltage: 24VDC

  • Alternate Text

    ● Max.MPPT Charging Current: 60A

  • Alternate Text

    ● Max.PV Array Power: 1600W

Download User Manauel Buy Now


 All In One Solar Charge Inverter

MODELHF2430S60-100
INVERTER OUTPUT
Rated Output Power3000W
Max.Peak Power6000VA
Rated Output Voltage230Vac(L/N/PE single phase)
Load Capacity of Motors
2HP
Rated AC Frequency50Hz/60Hz
WaveformPure Sine Wave
Switch time10ms

BATTERY
Battery TypeLi-ion/Lead-Acid/User Defined
Rated Battery Voltage24Vdc
Voltage Range20-33Vdc
Max.MPPT Charging Current60A
Max. Mains/Generator Charging Current80A
Max.Hybrid Charging Current140A

PV INPUT
Num. of MPPT Trackers1
Max. PV Array Power1600W
Max. Input Current40A
Max.Voltage of Open Circuit
100Vdc
MPPT Voltage Range30-85Vdc
MAINS/GENERGATOR INPUT
Input Voltage RangeUPS:170-280Vac  APL:90-280Vac
Frequency Range50Hz/60Hz
Bypass Overload Current30A
EFFICIENCY
MPPT Tracking Efficiency99.9%
Max.Battery Inverter Efficiency92%
GENERAL
Dimensions378*280*103mm
Weight6.2kg
Protection Degree
IP20, Indoor only
Operating Temperature Range-15℃ ~ 55℃
Noise< 60dB
Cooling MethodInternal Fan
Warranty2 years
COMMUNICATION
Embedded InterfacesRS485/CAN/USB/Dry Contact
External Modules (Optinal)
Wifi/GPRS
